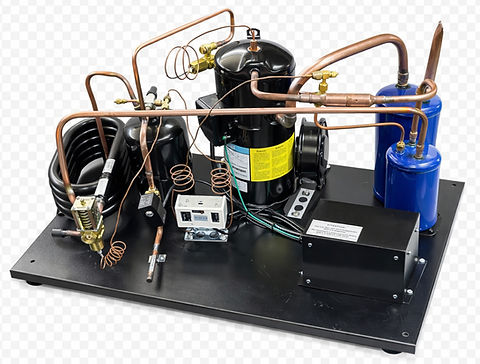

Water-Cooled Unit QTYM86E7G-Q100 Med Temp Condensing Unit 5HP, R404A 3PH/22

Assembled in USA. Unit equipped with Invotech YM70E7G-Q100 Scroll Compressor.

HP: 5HP

Volts: 208/230 VAC

Phase: 3PH

Refrigerant: R404a

BTU: 39,529 BTU @ 20°F

Nominal Performance

Capacity 5,313 / – Watts

39,529 / – BTU/Hr @ 20F

Power Input 4,397 / – Watts

Locked Rotor Amps 140.00 / – Amps

Max Continuous Current – / – Amps

Rated Load Amps 17.3 / – Amps

Discharge Tube: 1/2″

Suction Tube:7/8″

Testing Conditions

Condensing Temperature 129.9 °F

Evaporating Temperature 19.9 / – °F

Liquid Temperature 115.0 °F

Return Gas Temperature 95.0 °F

Ambient Temperature 95.0 °F

Application

Evaporating Temp. Range MBP @ -9.9° F to 34.0° F

Heat Pump -° F to -° F

Refrigerant R404A

Refrigerant Flow Control Capillary Tube

Compressor Cooling Fan

Compressor and Motor data

Compressor Type Scroll

Oil Type : Polyolester Oil
