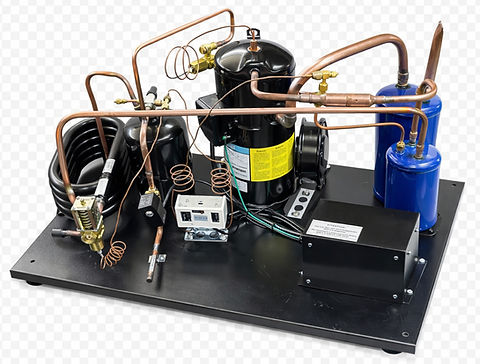

Water-Cooled Unit QTYM49E7G-Q100 Med Temp Condensing Unit 3HP, R404A, 3PH/220

Unit equipped with INVOTECH (YM49E7G-Q100) Scroll Compressor.



Description

HP: 3 HP



Volts: 208/230 VAC



Phase: 3PH



Refrigerant: R404a



BTU: 20,600 BTU @ 20°F







Nominal Performance







Capacity 3,227 / – Watts



20,600 / – BTU/Hr @ 20F



Power Input 3,108 / – Watts



Locked Rotor Amps 99.00 / – Amps



Max Continuous Current – / – Amps



Rated Load Amps 10.4 / – Amps



Discharge Tube: 1/2″



Suction Tube:7/8″











Testing Conditions







Condensing Temperature 129.9 °F



Evaporating Temperature 19.9 / – °F



Liquid Temperature 115.0 °F



Return Gas Temperature 95.0 °F



Ambient Temperature 95.0 °F







Application







Evaporating Temp. Range MBP @ -9.9° F to 34.0° F



Heat Pump -° F to -° F



Refrigerant R404A



Refrigerant Flow Control Capillary Tube



Compressor Cooling Fan



Compressor and Motor data



Compressor Type Scroll



Oil Type : Polyolester Oil
