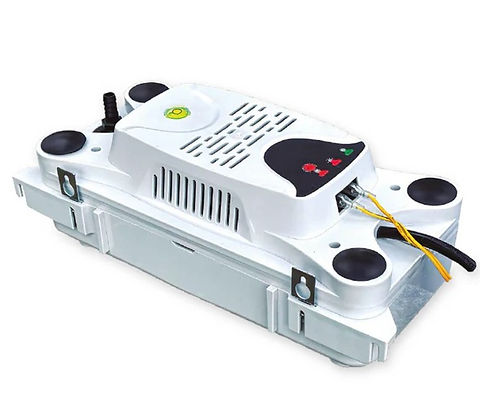

Low Profile Condensate Pump – 20FT 115V
SKU: SPL-115-20
PRODUCT TYPE: CONDENSATE PUMPS
Specifications:
HP: 1/9
TUBING: No
VOLTAGE: 115V
LIFT FEET: 20
SAFETY SWITCH: Yes
Compact and reliable condensate pump with enhanced reliability and built-in safety features for HVAC systems.
The Low Profile Condensate Pump offers a compact 5″ height, thermal protection, automatic overflow safety, and vibration dampening—ideal for gas furnace condensate applications.
Product Overview:
This Low Profile Condensate Pump is designed for compact installations with only 5″ height. Featuring a high impact ABS 1/4 gallon tank, thermal overload protection, and a new generation float arm for reliable operation.
The pump includes a two-stage motor float switch, built-in overflow safety, rubber vibration pads, and wall mounting tabs for easy installation.
Suitable for gas furnace condensate systems with water temperatures up to 120°F. One-year limited warranty included.
Features:
Compact design – only 5” tall
High impact ABS 1/4 gallon tank
6’ power cord with grounded 3-pronged plug
Thermal overload protection
New generation float arm for enhanced reliability
Two-stage motor float switch (Start/Stop)
Built-in automatic overflow safety switch
20’ shut-off head
Replaceable 3/8” O.D. barbed discharge valve
Four inlet drain openings
Built-in wall mounting tabs
Rubber pads for vibration dampening
Suitable for gas furnace condensate applications
Max water temperature: 120°F
