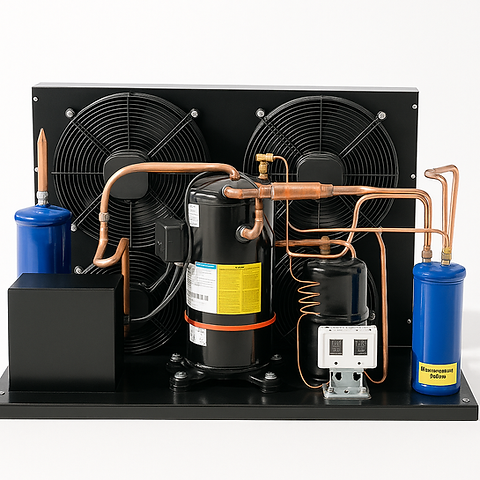

Outdoor Med Temp Condensing Unit 10 HP, R404A, 3 Phase
Assembled in USA. Unit equipped with Invotech QTYM182E7G-Q100 Scroll Compressor.
NOTE: Due to the dimensions and weight of the unit, this listing is for local pickup only.
Invotech Compressor Specs: https://scrolls.csgcompressors.com/docs/YM182E7G-100.pdf
The YM182E7G-100 Scroll Compressor delivers reliable 10 HP performance for medium-temperature refrigeration systems using R448A or R449A refrigerants.
Built with a low-side shell design, it provides up to 73,852 BTU/hr of cooling capacity with a high-efficiency COP of 2.2 W/W. Its three-phase 208-230 V motor runs smoothly at 3,500 RPM, drawing 33.3 A RLA and 290 A LRA on startup.
Engineered for durability, the compressor features POE oil lubrication (2.7 L charge), quiet operation at 79 dBA, and protection up to IP54.
Compact and efficient at 54 kg, it’s ideal for modern condensing units and walk-in refrigeration applications requiring dependable cooling under varying loads.
Details
Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States. CROSS REFERENCES: “CS27K6E-PFV-236 CS20K6E-PFV-***”-M63A243BBCAVA9522ZXD”ICE2106 9181123-11″
