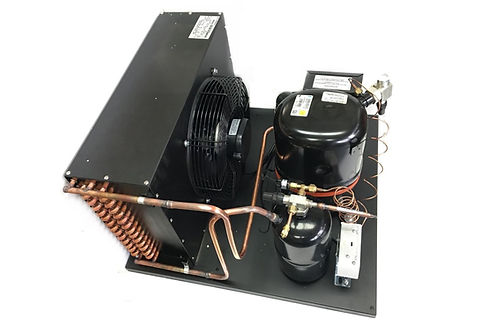

Outdoor Condensing Unit 2 HP, Low Temp, R404A, 220V/1PH
Assembled with QT AWA2460ZXD Compressor. One Year Manufacturer’s Warranty.
DImensinons: 28-1/2”L X 25-5/8”W X 19”H
Performance
Product Specifications
B/M 2C2114-9
Compressor # AWA2460ZXD
HP 2
Height 16.2″
Length 24″
Liquid Conn. 3/8″ ODF
Max. Fuse Size 25
Min. Circuit Amps 17.1
Phase 1
Pressure Control Dual
Receiver Capacity Lbs. 9.8
Refrigerant R404A
Suction Conn. 7/8″ ODF
Volts 208-230
Width 19.4″
Technical Specifications
BtuH Capacity @ -10°F Evap. 7871
BtuH Capacity @ -20°F Evap. 5,925
BtuH Capacity @ -30°F Evap. 4,080
BtuH Capacity @ -40°F Evap. 2,337
BtuH Capacity @ -5°F Evap. 8,895
BtuH Capacity @ 0°F Evap. 9,918
BtuH Capacity @ 10°F Evap. 12,067
All units charged with ester oil and dry nitrogen denote Minimum Circuit Ampacity and Maximum Fuse Size BtuH capacity ratings below are based on 90°F ambient and listed evaporator temperature
