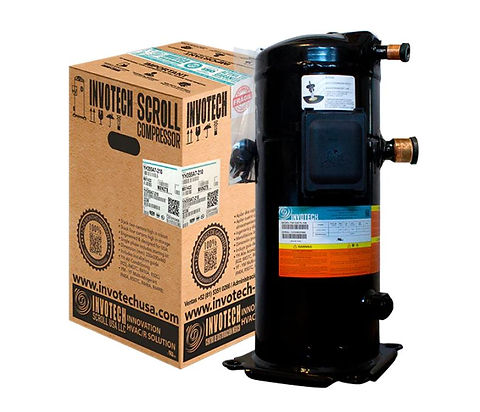

Invotech YM86E7G-Q100 Scroll Med Temp Compressor 5HP, R404A 3PH/220V

220V



HP: 5 HP



Volts:208/230 VAC/60Hz



Phase: single



Refrigerant:R404a



BTU: 35,161 BTU @ 20°F









Performance

Nominal Performance



Capacity 5,153 / – Watts

35,161 / – BTU/Hr @ 20F

Power Input 5,153 / – Watts

Locked Rotor Amps 136.00 / – Amps

Max Continuous Current – / – Amps

Rated Load Amps 16.6 / – Amps

Discharge Tube: 1/2″



Suction Tube:7/8″







Testing Conditions



Condensing Temperature 129.9 °F

Evaporating Temperature 19.9 / – °F

Liquid Temperature 115.0 °F

Return Gas Temperature 95.0 °F

Ambient Temperature 95.0 °F



Application



Evaporating Temp. Range MBP @ -9.9° F to 34.0° F

Heat Pump -° F to -° F

Refrigerant R404A

Refrigerant Flow Control Capillary Tube

Compressor Cooling Fan

Compressor and Motor data

Compressor Type Scroll

Oil Type : Polyolester Oil
