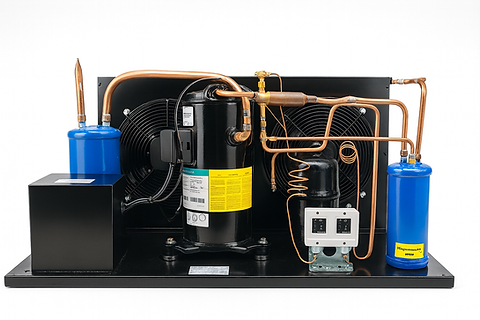

Indoor QTYM86E7G-Q100 Scroll Med Temp Condensing Unit 5HP, R404A 3PH/220

Assembled in USA. Unit equipped with Invotech YM70E7G-Q100 Scroll Compressor.



Outdoor Condensing Unit 5 HP, Commercial Temp, R404A, 220V/3PH



Dimensions: 41-5/8”L X 28-3/8”W X 24-1/8”H







HP:5HP



Volts:208/230 VAC



Phase:3PH



Refrigerant:R404a



BTU: 39,529 BTU @ 20°F







Nominal Performance







Capacity 5,313 / – Watts



39,529 / – BTU/Hr @ 20F



Power Input 4,397 / – Watts



Locked Rotor Amps 140.00 / – Amps



Max Continuous Current – / – Amps



Rated Load Amps 17.3 / – Amps



Discharge Tube: 1/2″



Suction Tube:7/8″











Testing Conditions







Condensing Temperature 129.9 °F



Evaporating Temperature 19.9 / – °F



Liquid Temperature 115.0 °F



Return Gas Temperature 95.0 °F



Ambient Temperature 95.0 °F







Application







Evaporating Temp. Range MBP @ -9.9° F to 34.0° F



Heat Pump -° F to -° F



Refrigerant R404A



Refrigerant Flow Control Capillary Tube



Compressor Cooling Fan



Compressor and Motor data



Compressor Type Scroll



Oil Type : Polyolester Oil
