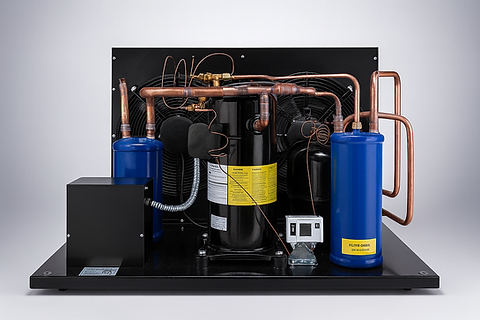

Indoor QTYM182E7G-Q100 Scroll Med Temp Condensing Unit 10 HP/3Phase, R4

Assembled in USA. Unit equipped with Invotech QTYM182E7G-Q100 Scroll Compressor.







NOTE: Due to the dimensions and weight of the unit, this listing is for local pickup only.







Invotech Compressor Specs: https://scrolls.csgcompressors.com/docs/YM182E7G-100.pdf







The YM182E7G-100 Scroll Compressor delivers reliable 10 HP performance for medium-temperature refrigeration systems using R448A or R449A refrigerants.







Built with a low-side shell design, it provides up to 73,852 BTU/hr of cooling capacity with a high-efficiency COP of 2.2 W/W. Its three-phase 208-230 V motor runs smoothly at 3,500 RPM, drawing 33.3 A RLA and 290 A LRA on startup.







Engineered for durability, the compressor features POE oil lubrication (2.7 L charge), quiet operation at 79 dBA, and protection up to IP54.







Compact and efficient at 54 kg, it’s ideal for modern condensing units and walk-in refrigeration applications requiring dependable cooling under varying loads.





Details

Warranty Information: One year warranty on compressor from date of purchase. Buyer is responsible for shipping cost. Defective unit must ship prepaid. Return Merchandise Authorization (RMA) must be pre-approved by contacting us. No exception. NOTE: We only ship this unit to 48 Continental States. CROSS REFERENCES: “CS27K6E-PFV-236 CS20K6E-PFV-***”-M63A243BBCAVA9522ZXD”ICE2106 9181123-11″



Specifications

Specification Details

Model YM182E7G-100

Type Low Side Shell Design Scroll Compressor

Application Medium Temperature Refrigeration

Power 10 HP

Capacity (BTU/hr) 73,852

Refrigerant R448A / R449A

Displacement (cc/rev) 167.2

Cooling Capacity (W) 21,645

Input Power (W) 9,851

Rated Load Amps (RLA) 33.3

Cooling COP (W/W) 2.2

Power Supply 208-230V / 3-Phase / 60Hz

Min. Operating Voltage 187 V

Max. Operating Voltage 253 V

Locked Rotor Amps (LRA) 290

Max. Operating Current 49.2 A

Rated Speed (RPM) 3,500

Compressor Weight (with oil) 54 kg

Oil Type POE

Oil Kinematic Viscosity (40°C) 32 cSt

Oil Density (20°C) 0.977 kg/L

Primary Charge 2.7 L

Recharge 2.55 L

Oil Circulation Rate ≤ 1%

Rated Sound Power 79 dBA

Max Operating Sound (Envelope) 84 dBA

Vibration Displacement Peak-Peak ≤ 0.12 mm

Moisture ≤ 1500 mg

Impurity ≤ 180 mg

LVS (Low Voltage Start) 177 V

MOV (Max Operating Voltage) 187 V

Start Capacitor / Relay / Run Capacitor None

IP Class (Terminal Box) IP54

Compressor Color Black
