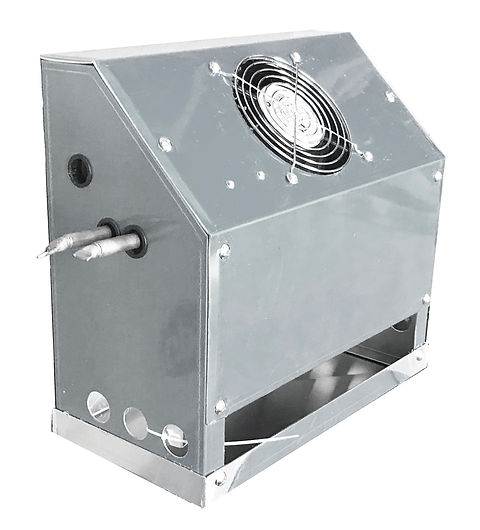

Model # EVHA090A Back Bar Reach-In Cooler Evaporator This compact, wall-mounted unit whose low height makes it ideal for undercounter reach-in or drawer-type fixtures. The unit draws air in at the bottom and discharges out the front. The 45°-facing fan design can direct the air where needed, usually onto drop-in trays of condiments in salad bar or sandwich preparation fixtures. This unit is designed for 35° to 40°F fixture temperature with off-cycle defrost. The unit is designed to operate at 10° to 17° TD and 16 hours per day compressor run time • Coils have copper tubes with aluminum fins, mechanically bonded for efficient heat transfer. The coils are dehydrated and sealed • Sturdy aluminum cabinet • Knockouts are conveniently located for refrigerant lines • Expansion valve can be mounted inside the cabinet and connections are sweat-type • Motors are thermally protected and permanently lubricated • Sweat inlet connection to reduce leaks Specifications: British thermal unit (Btu/H): 900 Cubic Foot per Minute ( CFM ): 120 Quantity, Fan Motors: 1 Width( inches ): 13 Depth( inches ): 6.5 Height ( inches ): 12
